The Freedom Foamer: Tactical Strike Touch Free Vehicle Wash Kit

Deliver maximum impact with fully automatic remote soap injection and rapid push-button operation for single-step foam and rinse modes.

This injector automatically dilutes our soaps to the optimum panel impact ratio of 100:1, so you don't have to spend time or energy measuring. This feature is particularly useful in multi-user environments where drivers wash their own vehicles at the end of the day, or for detailers who want to streamline their process and complete more work in the same amount of time. This is the easiest way to save money and time in your wash bay!

INCLUDES

• 44" Chem-X Freedom Foamer Lance
• Replacement Foam Agitator Pad + O-Ring
• KEW to QC Adaptor for one-handed up close rinsing
• MTM Hydro SGS35 Shut Off Gun
• Suttner ST-160 Single Step Foam Injector
• 1 Gallon Old Glory

-

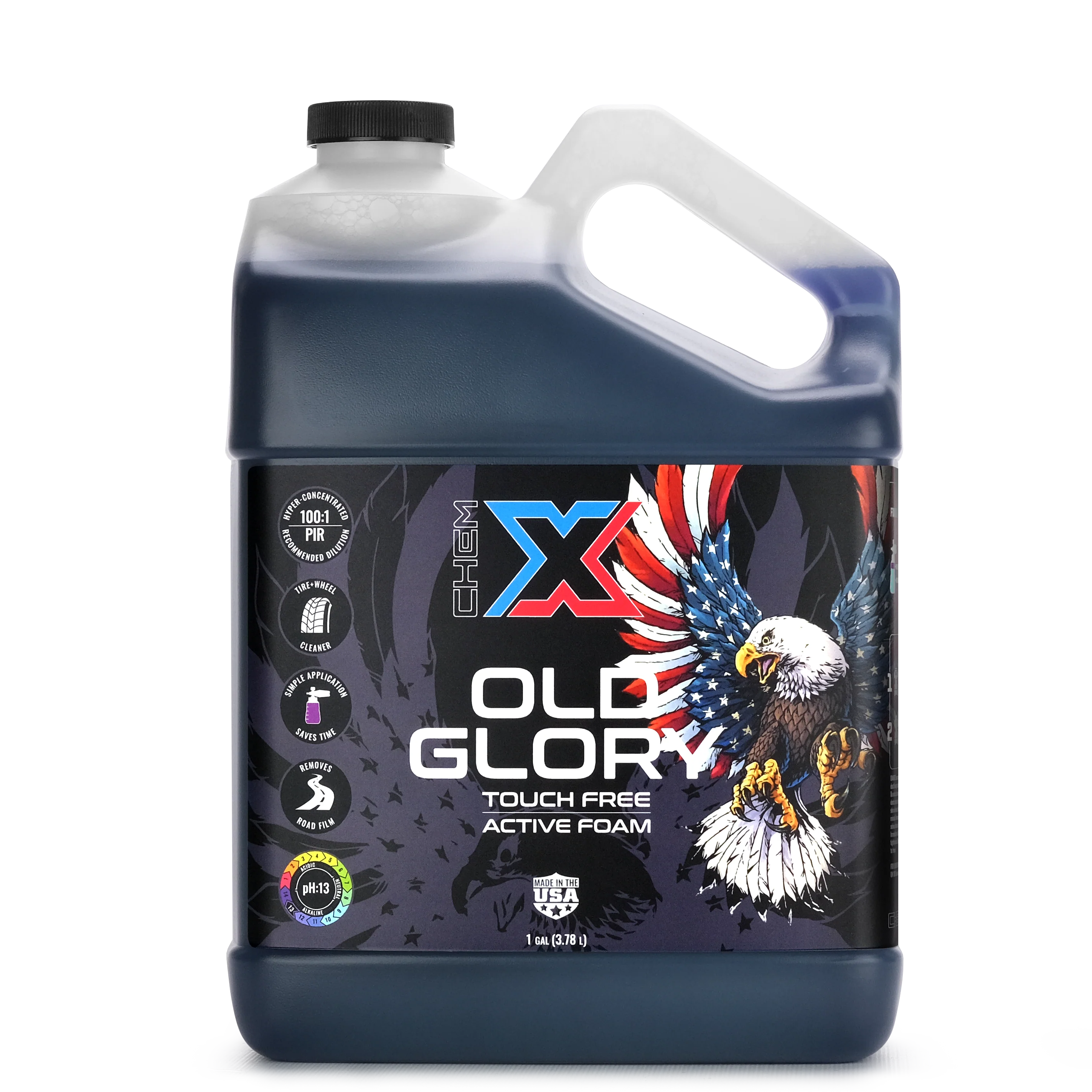

Old Glory Active Foam Wash

Designed to conquer grime, grease, and road film with unmatched efficiency, Old Glory symbolizes the same relentless spirit that keeps America moving forward. This touch-free foam cuts through the grit like a revolutionary force, saving time and effort while delivering a brilliant shine.

Let Old Glory wave proud in your arsenal of detailing products, a reminder that nothing stands in the way of progress, precision, and perfection. With its powerful active formula, it’s not just a soap; it’s a declaration of independence from dirt and grime.

FREEDOM FOAMER LANCE

The Chem-X Freedom Foamer was designed and hand built by Chem-X. We took the very best components and pieced them together in a layout with pure functionality and durability in mind. An almost fully stainless lance that is built to hold up in harsh environments. With this lance you can change between foam and rinse directly at the gun. The MTM Hydro Mezzo Shuttle Valve allows selection of either rinse or foam with the push of a button. By far the best foam lance on the market!

RAIL MOUNTED RECHARGEABLE TACTICAL FLASHLIGHT

Even in the most well-lit wash bays, there is never enough light. With this one-of-a-kind solution, you will never wonder again if you did, in fact, clean your wheel wells thoroughly. Engine bays, undercarriages, and trailer washouts will never be the same.

The OLIGHT Odin Rail Mounted Rechargeable Tactical Flashlight has been load tested in our studio for the last two years without a single failure, living up to our goals of offering durable solutions that are helpful.

MTM Hydro SGS35 TRIGGER

Our favorite trigger option here at Chem-X, the SGS35 features a stainless steel live swivel to maximize efficiency while working. The added fully stainless KEW outlet allows different lance and nozzle attachments and allows rotation under high psi while not sacrificing durability at this junction like conventional QC fittings.

MEZZO VALVE

The MTM Hydro Mezzo Shuttle Valve allows quick easy and durable selection between rinse and foaming functions. The valve allows complete changeover from the high psi rinse nozzle to the slightly lower psi foam nozzle, allowing the remote venturi injection at the ST-164 Injector to draw from your soap containers back at the power washer. This process eliminates refills entirely as well as the need to connect and disconnect foam cannons and rinse nozzles as would normally be the case.

SILENCER MODE

Ideal for small projects or car detailing, this layout allows lightweight one-handed operation and a backup foam or rinse option if the full-length lance were to clog or malfunction while soaping or rinsing a vehicle.

HIGH END FITTINGS

The Veloci Prima QC line is produced from 303 stainless steel sourced from the City of Steel, Pittsburgh, PA. It is machined to be three times more precise than standard QC fittings, resulting in a longer lifespan and a much higher quality feel. These QC fittings feature the smoothest action in the power washer industry, along with EPDM seals for high temperature and chemical tolerance.

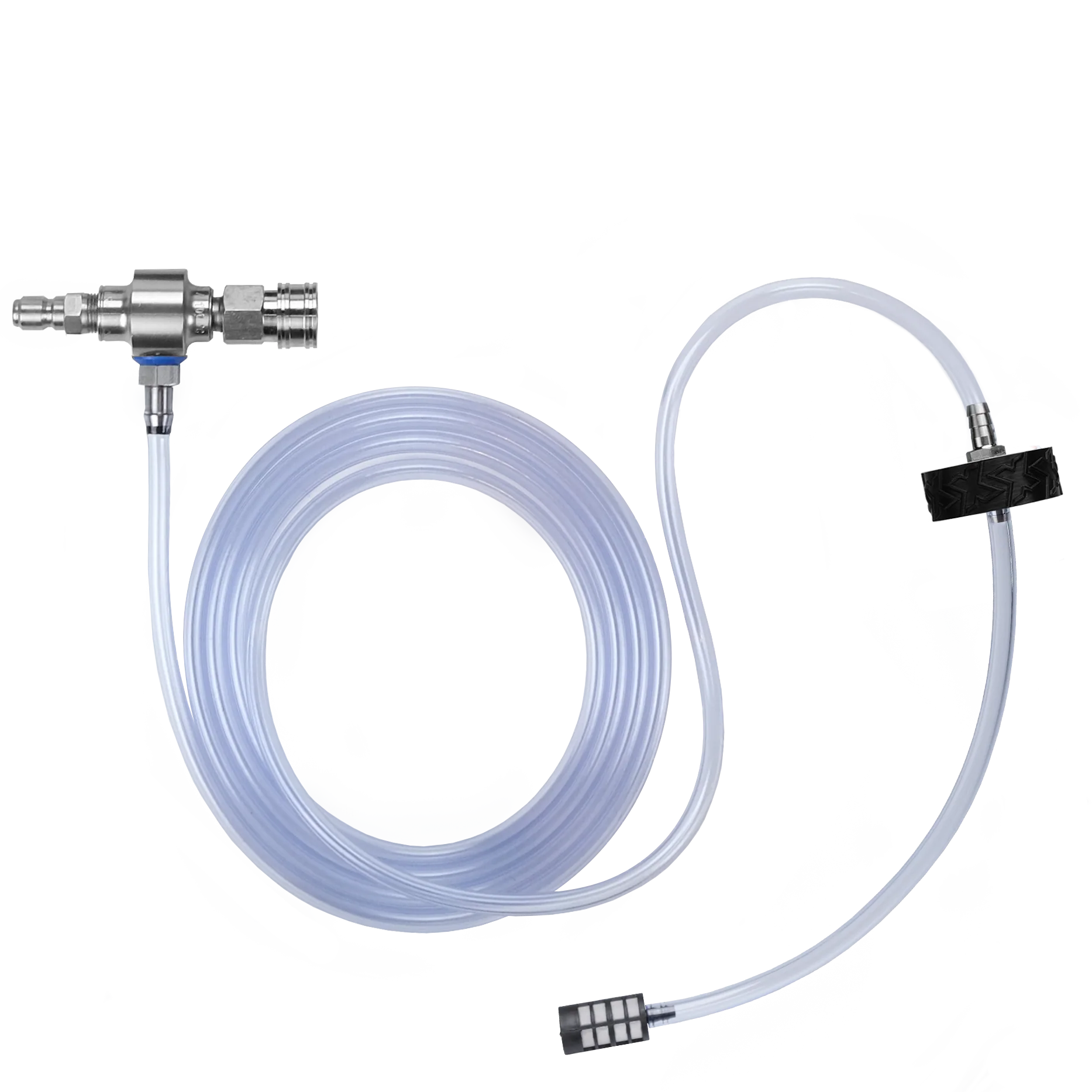

SUTTNER ST-160 Injector

The Suttner ST-160 Chemical Injector is the most efficient and durable foam injector available, with a dilution range from 10:1 to 200:1. It automatically dilutes the soap to a predetermined strength eliminating soap waste or pre-mixing. The ST-160 arrives pre-set by us to draw at 100:1(1%) dilution, the ideal strength for all of our super concentrated liquids. MORE INFO HERE.

-

• Plug + Play
• Uses 4-5x Less Soap Than Traditional Style Injectors
• 9 Dosing Nozzles Included
• Durable Stainless Steel Construction

*Other downstream injectors must be removed from your machine.
*Limited to 150' of power washer hose after the injector.
*ST-160 injectors come standard with a 3/8" QC Plug on the inlet and a 3/8" QC Coupling on the outlet. QC orientation can be reversed upon request.

-

- -

How to Install

1. Connect ST-160 injector after power washer and before your high psi hose. The ST-160 will be made ready with a stainless 3/8" quick connect plug on the inlet and a stainless 3/8" quick connect socket on the the outlet.

2. Place chemical pick up tube directly into soap.

3. Foam all of the things!

• Injector will be set to run at 100:1 unless specified otherwise, this can be changed by simply changing metering tip inside injector barb.
• If using a hot water machine, scale build up from your coil can plug injector or foam head. On start up always run with injector in rinse mode for about 30-60 seconds to flush out any build up.
• If a jumper hose is needed to go from your power washer to ST-160 injector please see our selection of hoses in accessories.

How To Repair Common Issues on Suttner Foam Gear

SPECS

44" CHEM-X FREEDOM FOAMER LANCE:

• Stainless Steel KEW connects
• Veloci Prima Stainless Steel QC fittings made in the USA
• Min/Max Flow Rate: 1-6GPM
• Min/Max PSI: 1000-40000 PSI
• Max Temp: 212° (Recommended Temp is 125°-130°)
• Adjustable Vented Grip

MTM HYDRO SGS35 SHUT OFF GUN:

• Easy Hold Technology for Increased Cleaning Efficiency
• Italian Manufactured
• Low Profile Stainless Steel Live Swivel
• Mas PSI: 5000 PSI
• Max Flow Rate: 12 GPM

SUTTNER ST-160 CHEMICAL INJECTOR:

• Max Hose Length After Injection: 150'
• Durable Stainless Steel Housing
• 18 Metering/Dosing Nozzles: Each chemical can be set at individual desired strengths (comes pre set to run 100:1)
• Min/Max Flow Rate: 1-18 GPM
• Min/Max PSI: 1000-4000 PSI
• Rated for 212° Water
